Customization: Available
Type: Electric Suction Unit
Kind: Electric Suction Unit
Send Inquiry

Product Description

Basic Info.
Model NO.
DFX-23B
Certification
CE, ISO13485
Group
Children / Adults
LCD Display
Without LCD Display
Adjustable Vacuum
0.013~0.09MPa
Flow Rate
≥28L/Min
Noise
≤60 dB(a)
Input Power
150 Va
Power Supply
AC 220V, 50Hz
Reservoir Capacity
1000 Ml/PC
Origin
Jiangsu, China
HS Code
9018909911
Product Description

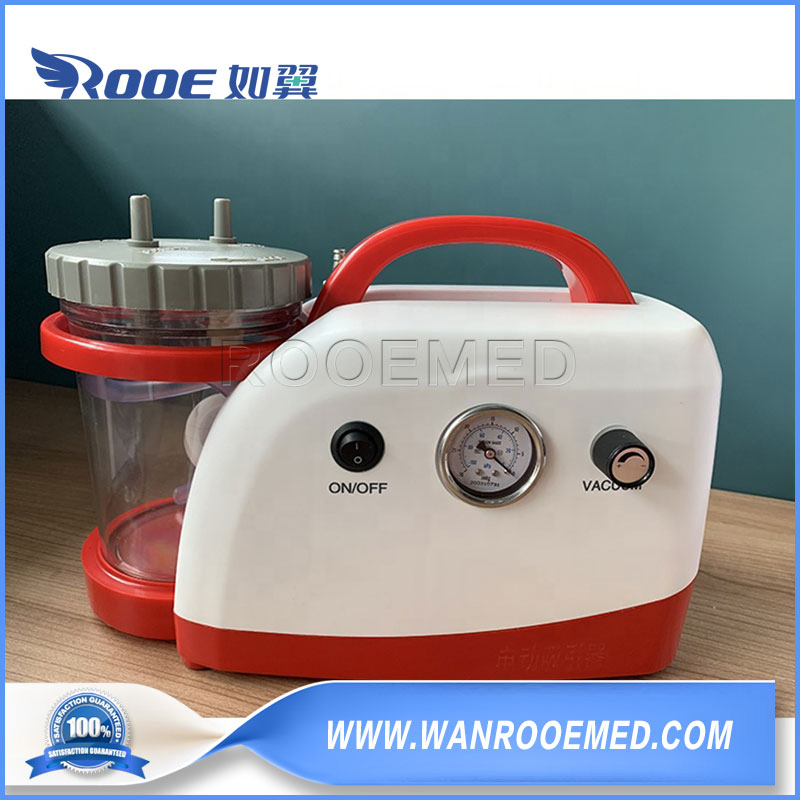

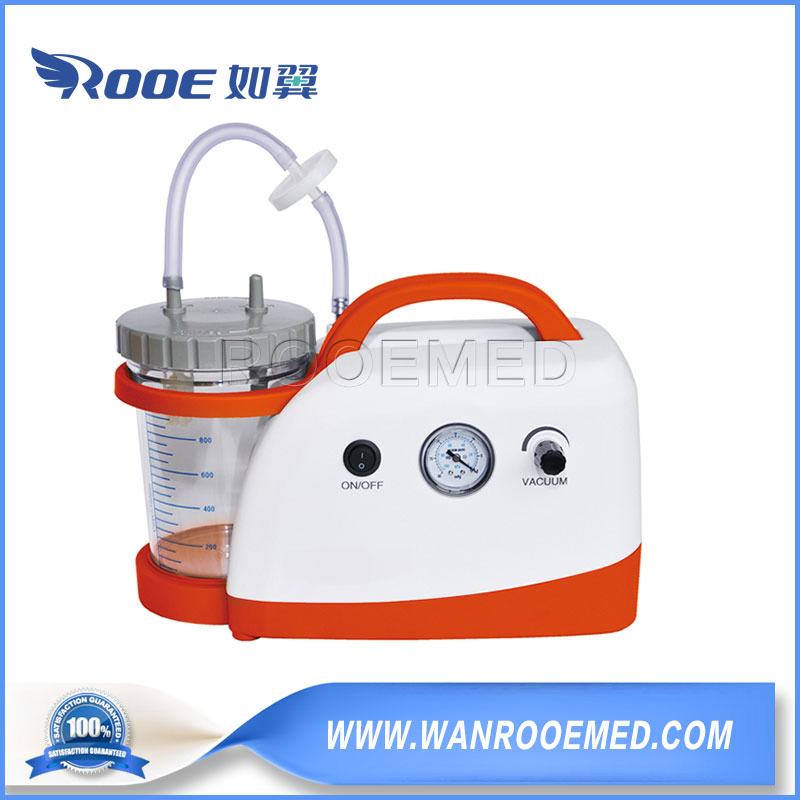

Ambulance Suction Apparatus Unit

Description:

The DFX-23B series ambulance suction unit is designed with low noise technology. It is highly effective for surgical operations and home use for the removal of blood, sputum, and other thick liquids from the human body.

This Portable Suction Device is engineered for both children and adults requiring trachea, mouth, and nose suction. The emergency device is versatile, powered by a rechargeable battery pack, car battery, or 220V power supply. Ideal for ambulance and first aid environments, the aspirator features a 1000 ml collection container with a relief valve system. The dashboard offers an ergonomic perspective for smooth operation, including an antibacterial filter to ensure toxins do not backflow into the pump.

Key Features
AC/DC power supplies compatible with car power
Battery lasts over 2 hours with auto-stop indicator
Seamless AC and DC automatic switching
Imported membrane pump for extended service life
Compact design for ambulance and field applications
Integrated overflow protection unit
Durable cold plate shell with electrostatic spraying
Low noise and maintenance-free operation
Equipped with both hand and foot switches
Technical Details
ModelDFX-23B
Adjustable Vacuum Range0.013~0.09MPa
Noise Level≤60 dB(A)
Flow Rate≥28L/min
Power SpecificationAC 220V±10%, 50Hz±2%
Input Power150 VA
Reservoir Capacity1000 ML/PC, 1PCS

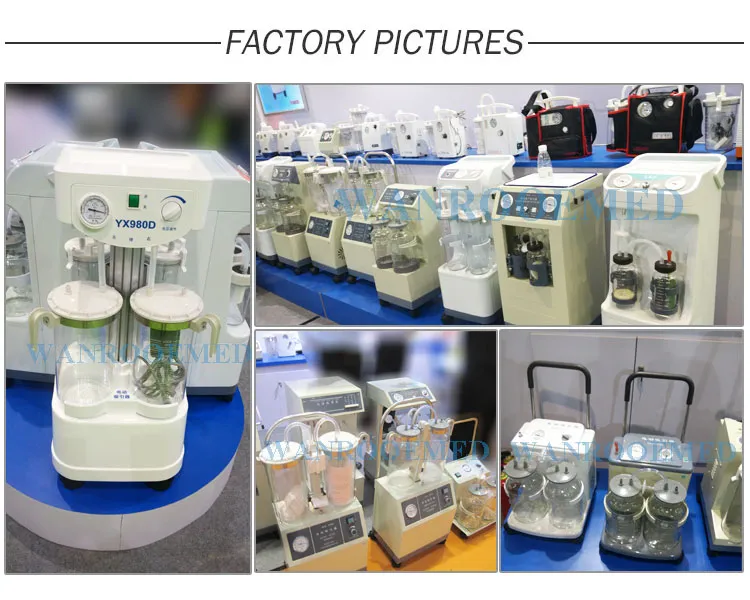

Ambulance Suction Detail
Frequently Asked Questions
Q: Can the DFX-23B be used in a moving ambulance? A: Yes, it is specifically designed for ambulance and field applications, supporting both car battery and internal battery power.
Q: How long can the battery operate on a full charge? A: The internal battery provides more than 2 hours of continuous use when fully charged.
Q: Is this suction unit suitable for pediatric use? A: Yes, it is designed for both children and adults for trachea, mouth, and nose suction procedures.
Q: Does the device require frequent maintenance? A: No, the unit uses an imported membrane pump which is maintenance-free and designed for long-term durability.
Q: What safety features are included to prevent contamination? A: It is equipped with an overflow protection unit and an antibacterial filter to prevent liquid and toxins from backflowing into the pump.
Q: How is the vacuum intensity controlled? A: The unit features an adjustable vacuum range from 0.013 to 0.09MPa, allowing for precise control based on the clinical requirement.
