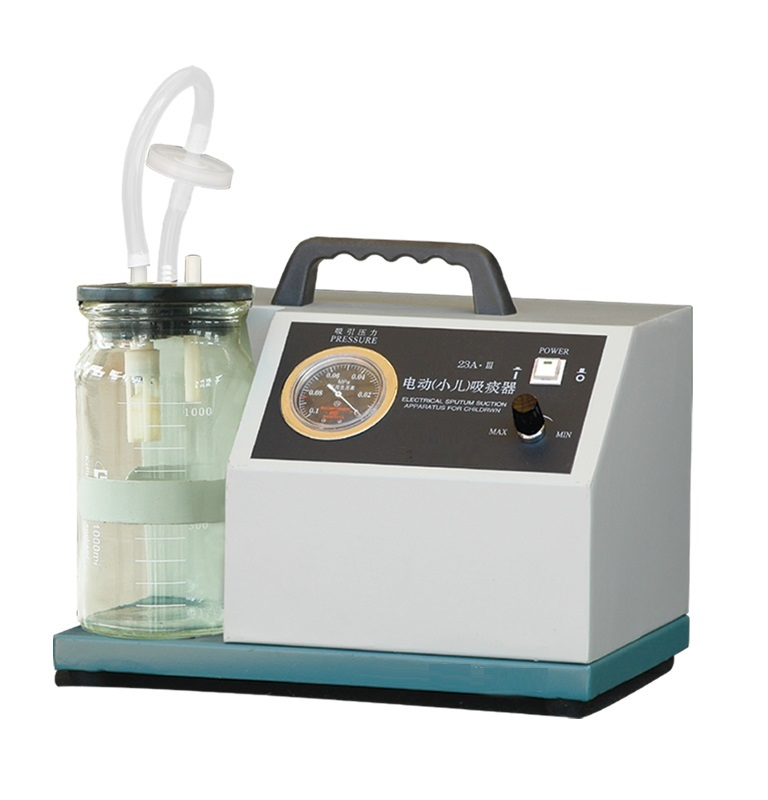

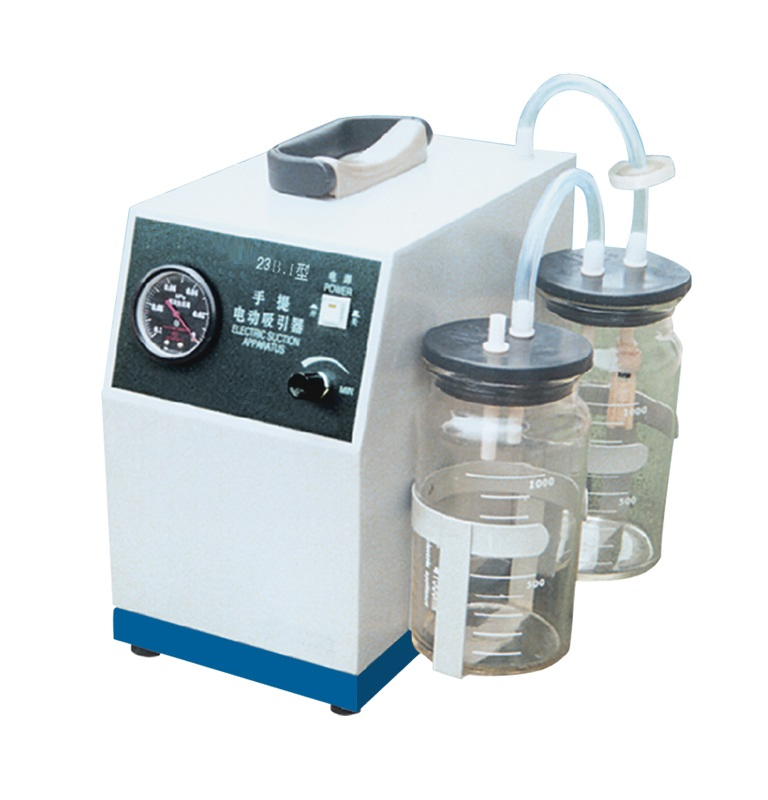

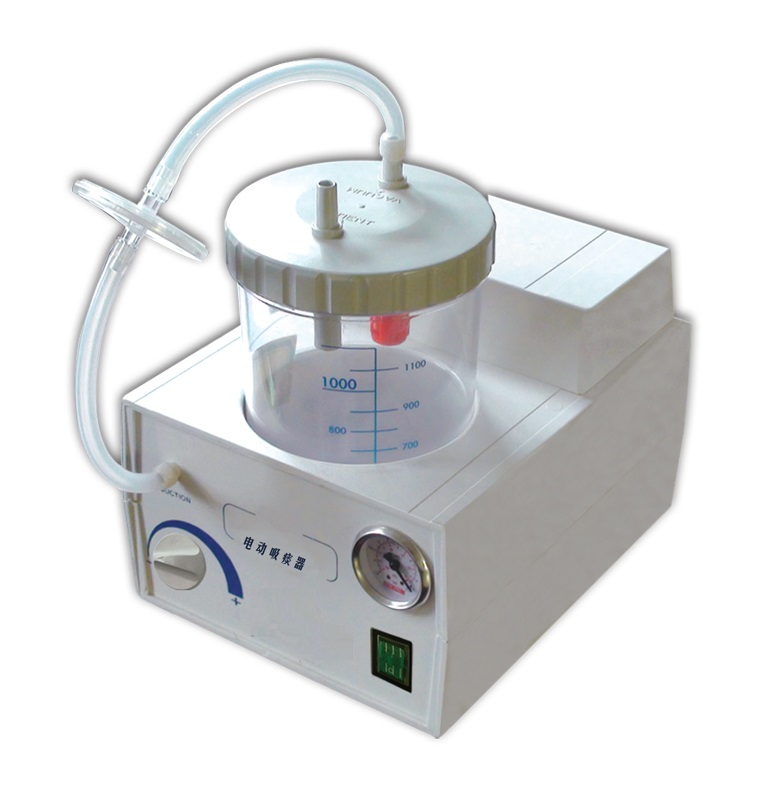

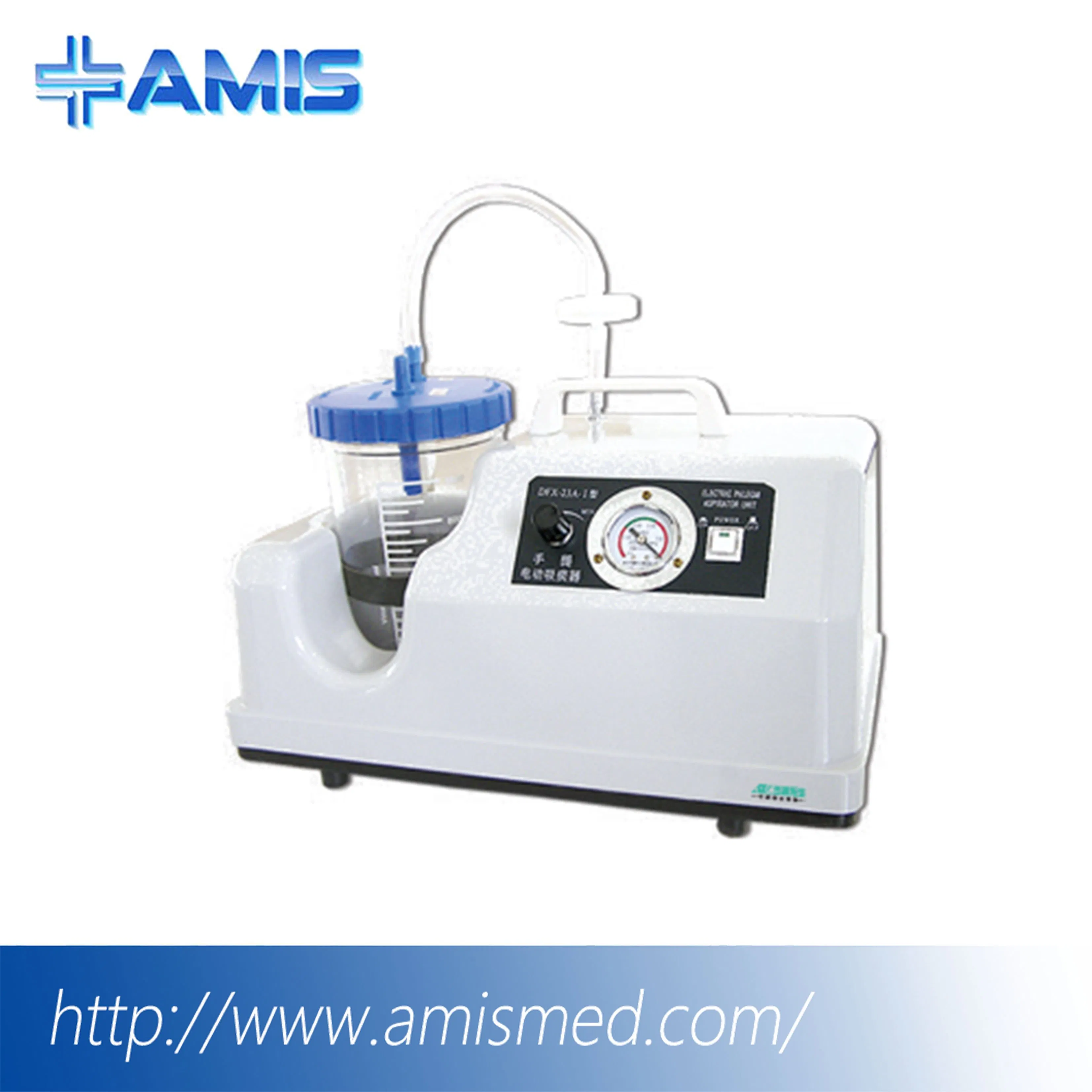

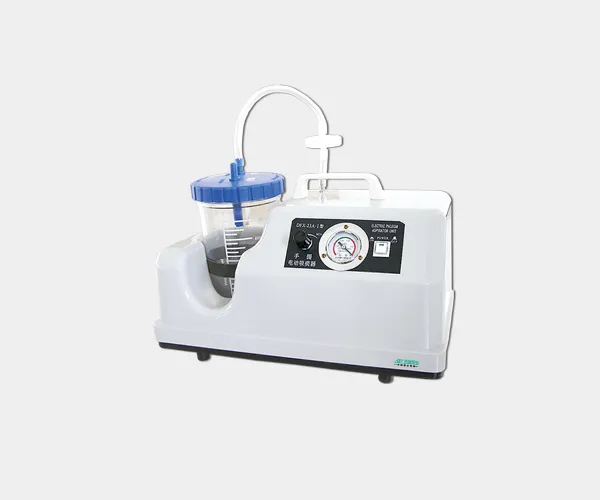

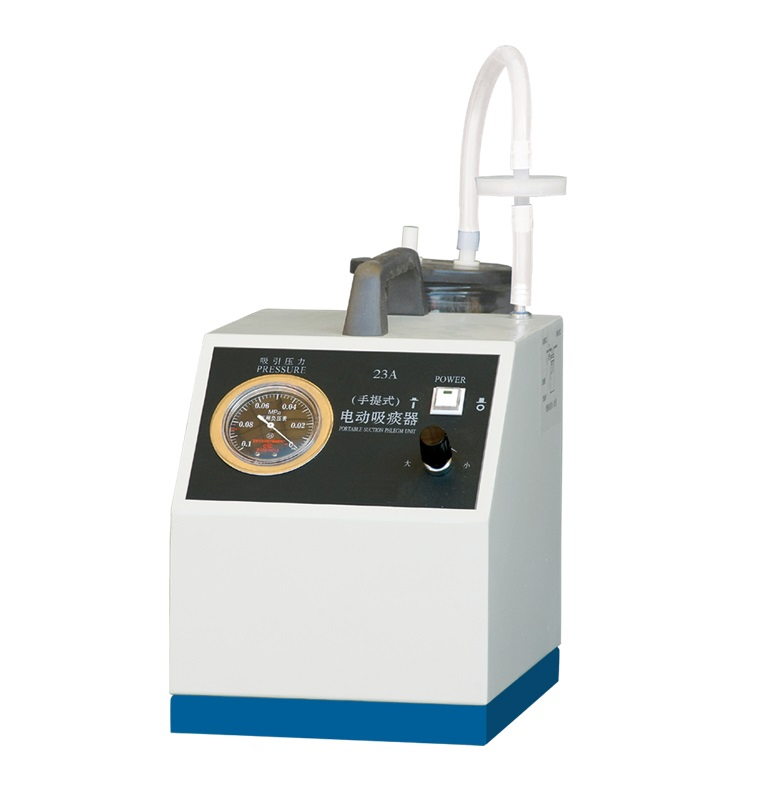

Portable Electrical Sputum Suction Device (AM-23A. I)
The AM-23A portable electrical sputum suction device is professionally designed for suctioning sputum and other thick secretions in hospitals, and is also suitable for first aid in household environments. The device utilizes an oil-free lubricating pump to prevent oil mist pollution, ensuring a clean and maintenance-free operation.
All-plastic ABS enclosure formed in one piece for durability and aesthetics.
Macromolecule suction bottle allows for easy cleaning and high-standard disinfection.
Maintenance-free oil-free pump prevents oil mist pollution and reduces daily servicing.
Compact design with low noise operation (≤ 55dB) and high mobility.
Equipped with an overflow protection unit to prevent liquid from entering the pump body.
| Mains | AC 220V ± 10% 50Hz |
| Pump structure | Oil-free pump |
| Air pumping efficiency | ≥ 15L/min |
| Limit of negative pressure | ≥ 0.08Mpa |
| Negative pressure range | 0.013 - 0.08Mpa |
| Input power | 150VA |
| Liquid vessel | 1000ml x 2 |
| Air storage vessel | 2500ml x 2 |
| Noise level | ≤ 55dB |
