📋 Basic Information
Certification
CE, ISO13485
Power Voltage
AC 220V+-10% 50Hz
Negative Pressure
>=0.09MPa(680mmhg)
Negative Pressure Range
0.013-0.09MPa(680mmhg)
Pump Structure
Self-Lubrication Without Oil
Transport Package
Carton / Wooden
Production Capacity
10000PCS/Year
🚀 Product Description

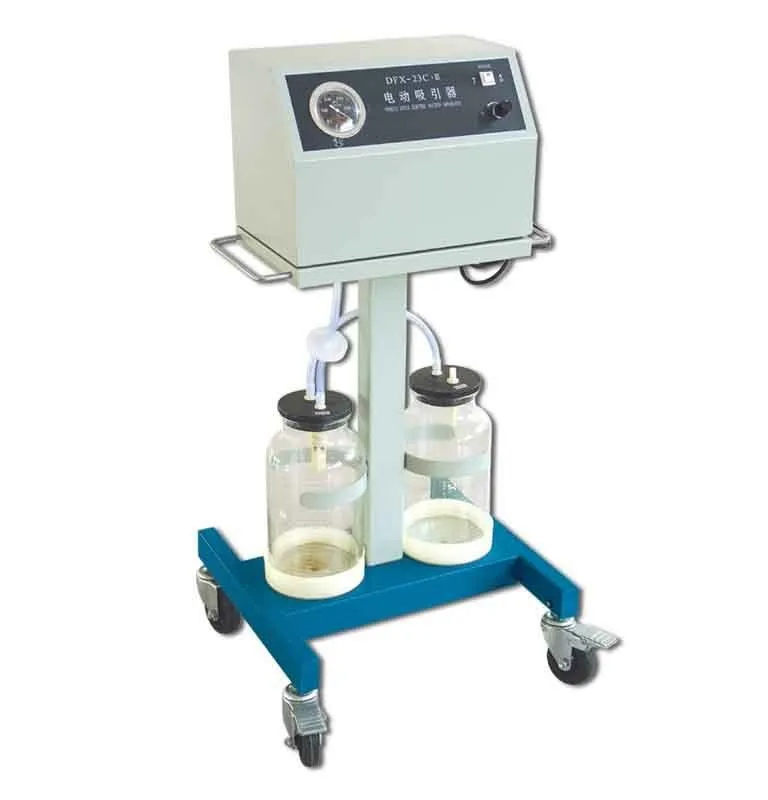

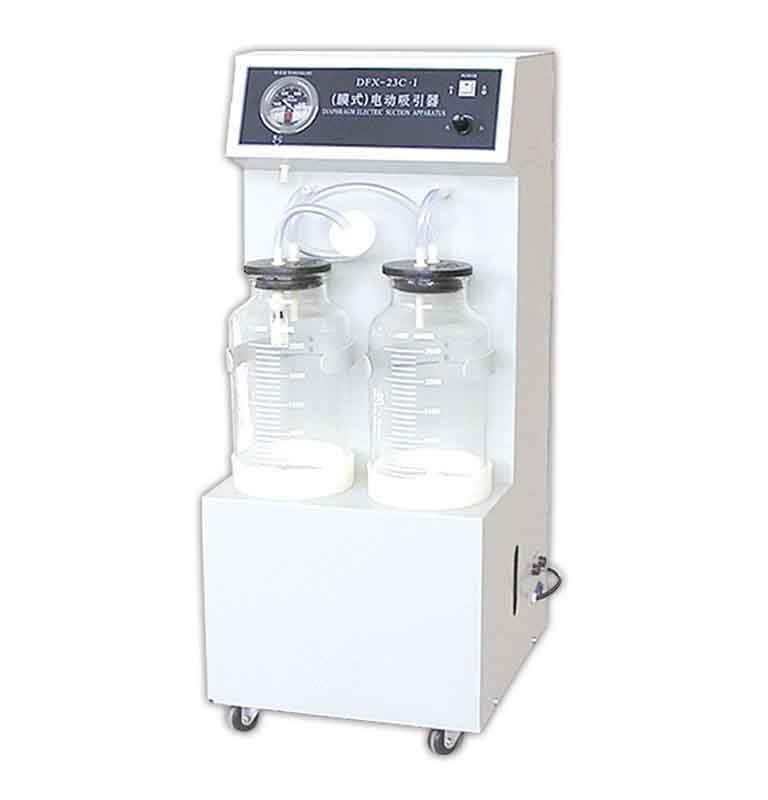

Mobile electric suction device
- Power supply: AC220V±10% 50Hz
- High Negative pressure: ≥0.09MPa(680mmHg) with diaphragm pump
- Efficient Suction rate: ≥25L/min
- Adjustable Range: 0.013MPa ~ 0.09Mpa (680mmHg)
- Large Capacity: Dual 2500ml suction bottles
- Low Noise: ≤55dB quiet operation
- Low Maintenance: Diaphragm type pump structure, no oil required
- Durable Design: All plastic shell, intermittent loading, and continuous operation support
Technical Dimensions: 55×50×96 CM
Gross Weight: 36 KG
❓ Frequently Asked Questions
What is the suction capacity of this mobile electric device?
The device offers a high suction rate of ≥25L/min and is equipped with two 2500ml suction bottles for high-capacity collection.
Does the pump require regular oil maintenance?
No, the device uses a self-lubricating diaphragm pump that is oil-free and requires no maintenance, ensuring clean and easy operation.
What certifications does this suction device hold?
This model is fully certified with CE and ISO13485 standards, meeting international medical safety requirements.
Is the negative pressure adjustable?
Yes, the negative pressure range can be adjusted between 0.013MPa and 0.09MPa (680mmHg) to suit different clinical needs.
What is the noise level during operation?
The device operates quietly with a noise level of ≤55dB, making it suitable for hospital environments where noise control is important.
What is the build material of the exterior?
The device features an all-plastic shell which is durable, easy to clean, and designed for mobile hospital use.
