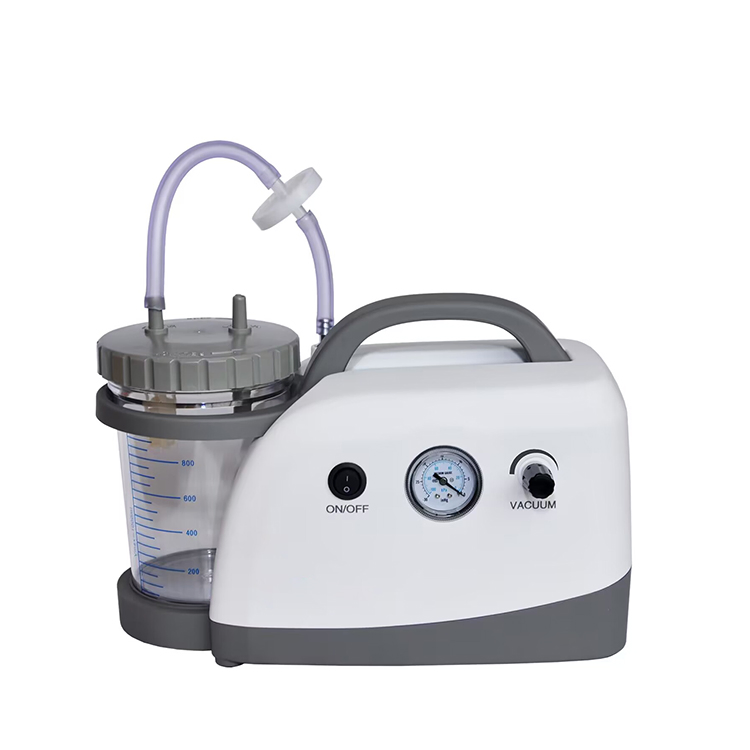

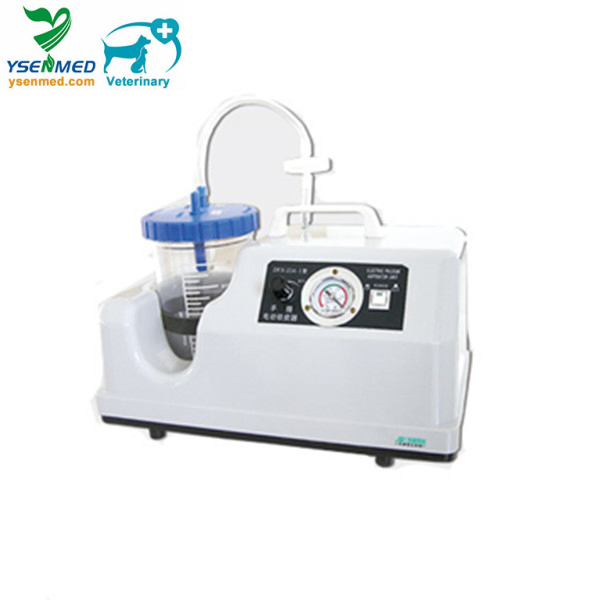

Medical Ys-23A1 Mini Surgical Portable Pet Suction Device

1 / 5

Medical Ys-23A1 Mini Surgical Portable Pet Suction Device

Customization:	Available
Type:	Suction Machine
Kind:	Portable Suction Machine

Send Inquiry

Product Description

Medical YS-23A1 Mini Surgical Portable Pet Suction Device

The YS-23A1 is a high-performance portable electrical sputum suction device designed for efficient suctioning of thick secretions. It is an ideal solution for both clinical hospital settings and emergency household first aid.

Basic Specifications

Model NO.

YS-23A1

Certification

ISO13485 / CE

Suction Rate

>15L/Min

Input Power

150VA

Pump Type

Oil-Free Diaphragm

Shell Material

All ABS Plastic

Core Advantages

🛡️ Maintenance Free: Features an oil-free lubricating pump, eliminating oil mist pollution.

💧 Overflow Protection: Built-in unit prevents liquid from entering the pump body.

🧼 Easy Cleaning: High-quality macromolecule suction bottle for simple disinfection.

🔇 Low Noise: Compact design with exceptionally quiet operation (≤55dB).

🚀 High Mobility: Characterized by small dimensions and light weight for portability.

💎 Durable Build: One-piece formed all-plastic ABS enclosure.

Technical Specification

Power Voltage	AC 220V±10% 50Hz
Negative Pressure	≥0.08Mpa (600mmHg)
Negative Pressure Range	0.013-0.08Mpa (600mmHg)
Suction Rate	≥15L/min
Suction Bottle Capacity	1000ml
Pump Structure	Self-lubrication without oil
Working Type	Intermittent loading, continuous operation

Frequently Asked Questions

Q1: Can this device be used for home care? Yes, the YS-23A1 is designed for both professional hospital use and first aid in a household environment.

Q2: Does the suction pump require daily oiling? No, it uses an oil-free lubricating pump which is maintenance-free and prevents oil mist pollution.

Q3: How is the device protected from liquid damage? The machine is equipped with an integrated overflow protection unit that automatically stops liquid from entering the pump body.

Q4: Is the suction bottle reusable? Yes, the macromolecule suction bottle is designed to be easily removed for cleaning and disinfection.

Q5: How noisy is the YS-23A1 during operation? The device is engineered for low noise performance, with a noise level of ≤55dB, making it suitable for quiet environments.

Q6: What is the maximum suction capacity? The YS-23A1 offers a powerful suction rate of ≥15L/min with a negative pressure reach of ≥0.08Mpa.
