Disposable Medical Imaging Catheter/Angiography Catheter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Lonyi-ZY

Sterilization

Ethylene Oxide Sterilization

Guarantee Period

Three Years

Group

Adult

Logo Printing

with or Without Logo, OEM

Specifications

5f, 6f, 7f

Transport Package

Sterilized or Non Sterilized Packaging

Production Capacity

30000 Pieces/Year

💉 Product Description

Disposable Medical Imaging Catheter / Angiography Catheter
It is a key equipment for percutaneous angiography.

🔹 Made of steel wire reinforced three-layer structure, with good bending resistance of the pipe body.

🔹 Clear development effect, soft head end.

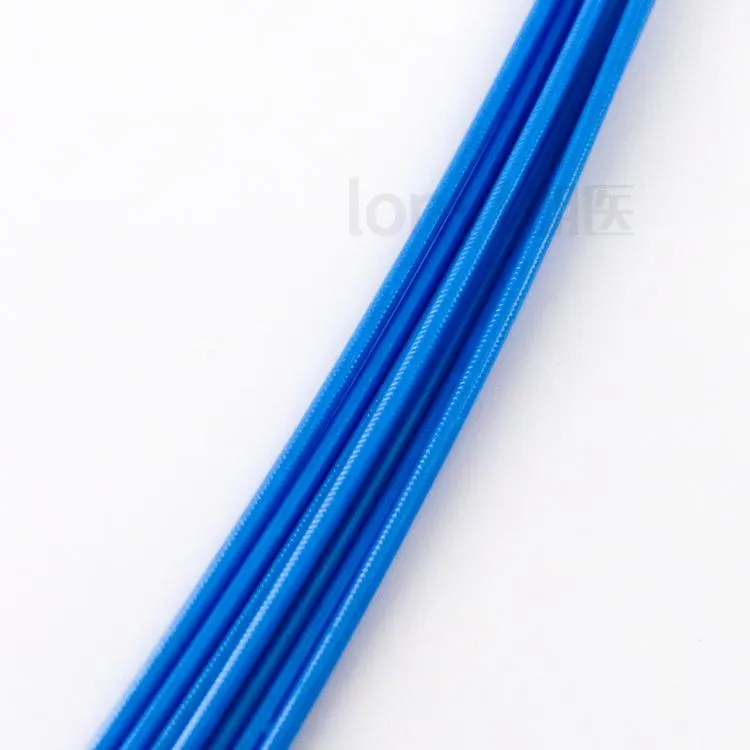

🔹 Braided structure for better torque handling and stability.

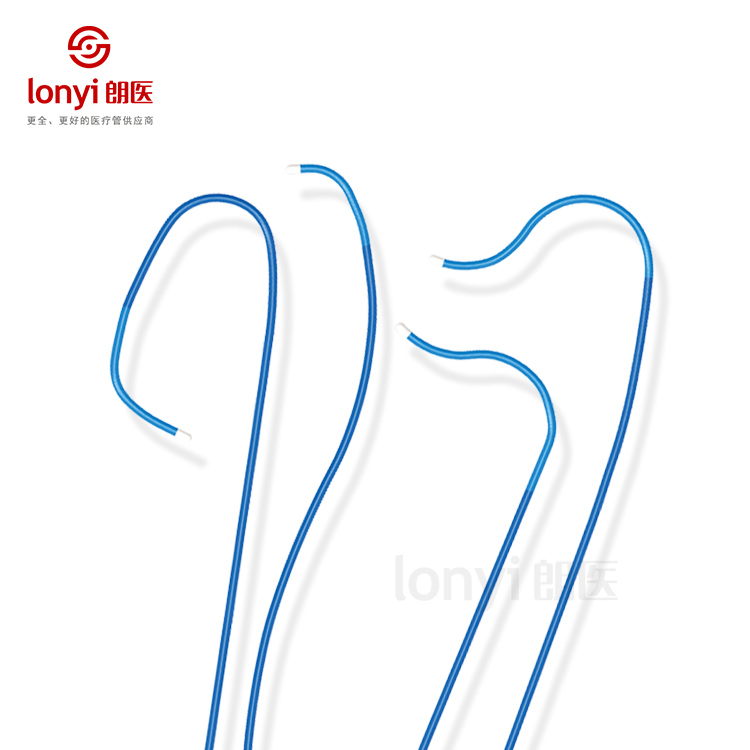

🔹 Customizable bending effect.

Outer Diameter	Effective length	Pressure limit	Available Shapes
4Fr/5Fr/6Fr	100~120 cm	4Fr - 750 psi 5Fr/6Fr - 1000 psi	Straight, JL3.5/4.0/4.5/5.0/6.0, JR3.5/4.0/5.0/6.0, PIG-80/145/155, AL1.0/2.0/3.0, AR1.0/2.0/3.0

Conventional Packaging Options:

Sterilization package: Paper plastic bag or blister box, ethylene oxide sterilization.
Non sterile package: Double PE bag package without sterilization.

* Customized packaging requirement is also welcomed.

🏢 Manufacturing Excellence

Established in 2011, our national high-tech enterprise is ISO13485 certified, specializing in the development and manufacturing of medical precision tubes and OEM catheters. Our core team brings over 20 years of industry experience.

We dedicate research to new materials and technologies, having advanced the modification of 22 types of polymer materials optimized for surgical performance. Products are manufactured in GMP standard Class 100,000 and Class 10,000 cleanrooms, achieving international dimensional tolerance standards of ±0.02mm.

Core Philosophy:

High Quality | Innovation | Good Faith | Dedication

Frequently Asked Questions

Q1: What are the main applications of this angiography catheter? It is primarily used as a key piece of equipment for percutaneous angiography to deliver contrast media to the vascular system.

Q2: What sizes and diameters are available? We offer standard sizes in 4Fr, 5Fr, and 6Fr outer diameters, with effective lengths ranging from 100cm to 120cm.

Q3: How does the braided structure improve performance? The braided steel wire reinforcement provides superior torque handling, enhanced stability, and excellent bending resistance during procedures.

Q4: What is the maximum pressure limit for these catheters? The 4Fr catheter has a pressure limit of 750 psi, while the 5Fr and 6Fr catheters are rated for up to 1000 psi.

Q5: Do you provide sterile packaging options? Yes, we offer ethylene oxide (EO) sterilized packaging in paper-plastic bags or blister boxes. Non-sterile double PE bag packaging is also available.

Q6: Are customized catheter shapes available? Yes, we support customizable bending effects and various head shapes (JL, JR, PIG, AL, AR) to meet specific surgical requirements.
