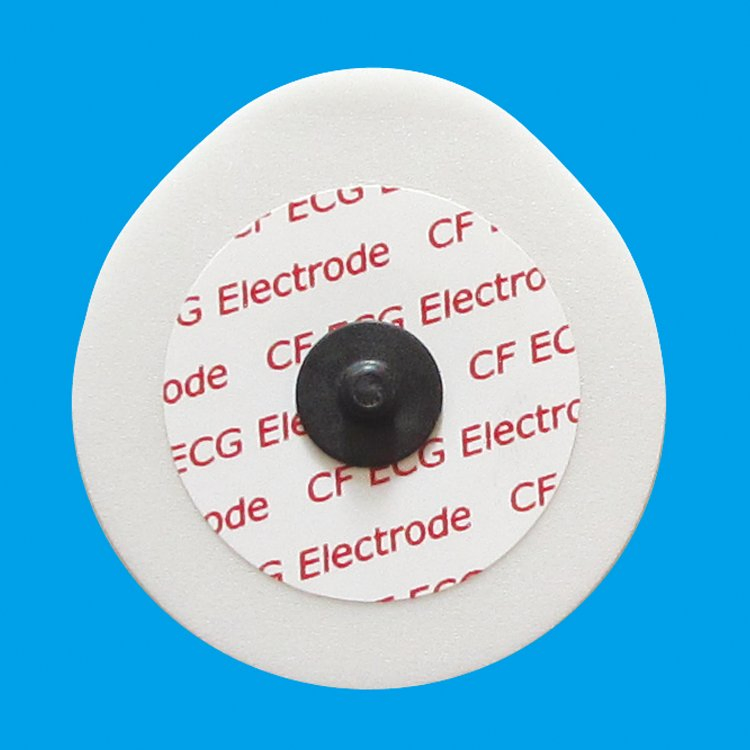

Disposable ECG Electrode Pads

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Product Name

Disposable ECG Electrode

Quality Guarantee

One Year

Feature

Self Adhesive, Reusable

Dimensions

55mm and So on

Color

White or Customized

Origin

China

HS Code

9018909919

Production Capacity

1,000,000 / Month

Sample

Available

Product Description

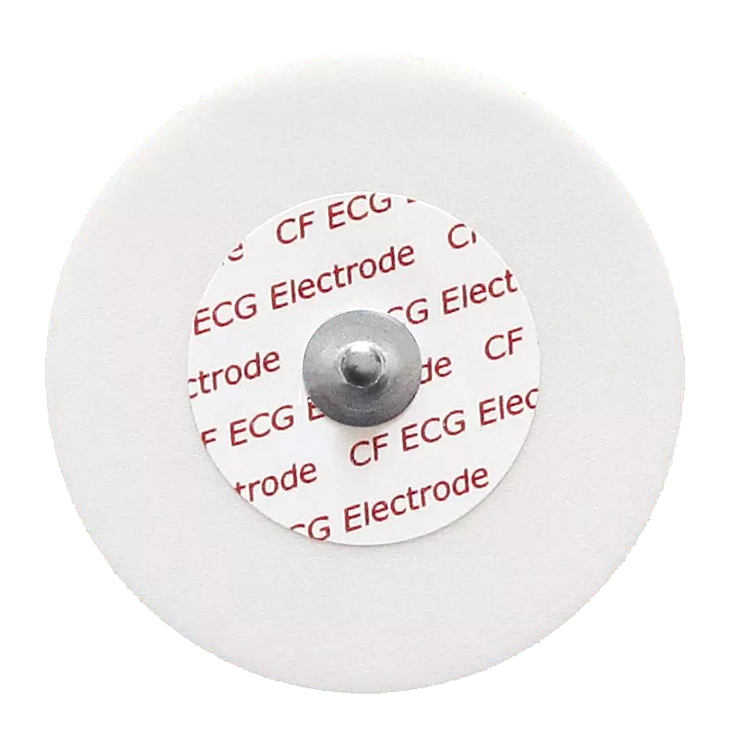

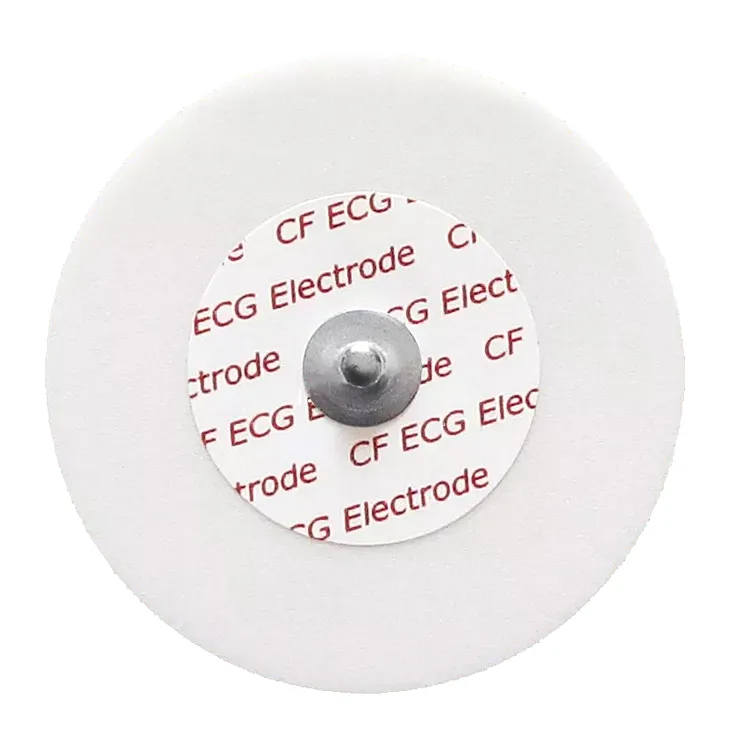

Monitoring Electrode

Suitable for normal ECG tests in diagnostic or monitoring, It uses an Ag/AgCl sensor element and solid conductive & adhesive Hydro-gel or wet conductive gel for adhesion. The Ag/AgCI sensor element has the best sensitivities and the solid conductive & adhesive hydro-gel and wet conductive gel has very low impedance and is non-irritating, non-sensitizing and non-cytotoxic to the skin.

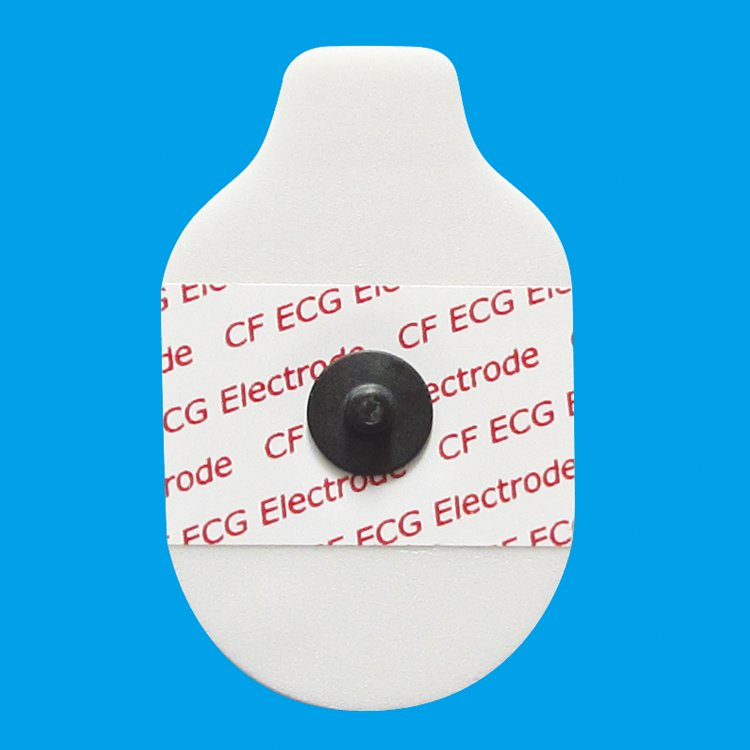

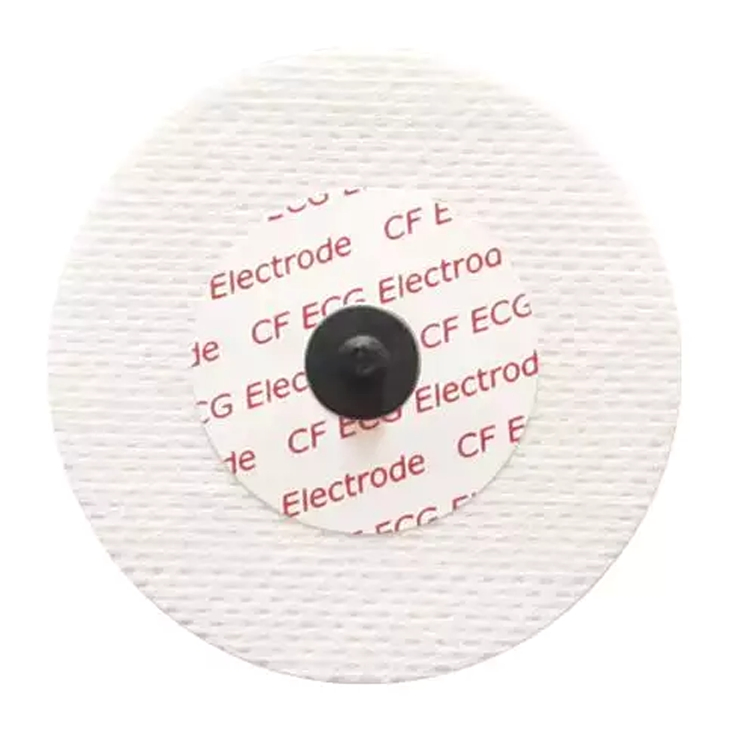

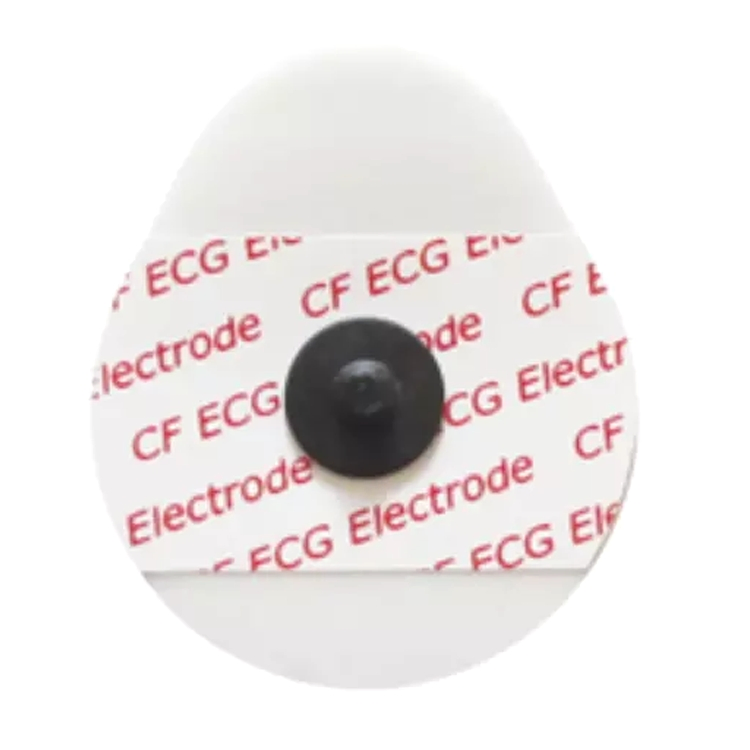

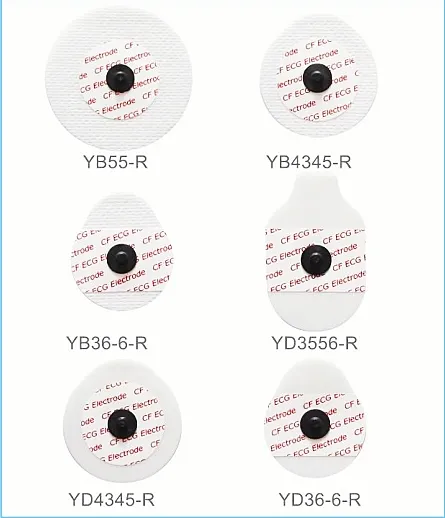

Radiolucent Electrode

Radiolucent electrode is designed for use during MRI, X-Ray procedures. Carbon snap will not interfere with Nuclear Imaging Systems.

Code	Size	Backing	Shape	Dimensions (mm)
YB55-R	Adult	Non-woven	Round	Ф55
YB4345-R	Adult / Child	Non-woven	Oval	43×45
YB36-6-R	Child	Non-woven	Droplike	36×42
YD3556-R	Adult	PE Foam	Oval	35×56
YD4345-R	Adult / Child	PE Foam	Oval	43×45
YD36-6-R	Child	PE Foam	Droplike	36×42

Instructions for Use

Select placement site as specified by protocol; ensure skin is dry, clean, and free of hair.
Connect the lead-wires to the electrodes.
Remove the plastic cover and position the electrode on the skin.
Smooth tape, foam, or backing with your finger as necessary.
Start ECG procedure.
Keep unused electrodes in original pouch; fold-over top to seal.
Dispose the electrodes after use.

Precautions & Storage

Precautions:

This device is sold by or on the order of a physician.
Do not open pouch until immediately prior to use.
Do not apply over skin folds, bony protuberances, cuts, or scar tissue.
Exercise caution with hypersensitive patients.
Follow protocol during electrosurgical procedures to avoid RF burns.

Storage:

Store in a cool dry place.
Store unused electrodes in the original pouch with the end folded shut.

Frequently Asked Questions

What materials are used in the ECG electrode sensor?

The electrodes utilize an Ag/AgCl sensor element combined with solid conductive adhesive hydro-gel or wet conductive gel for optimal sensitivity and low impedance.

Can these electrodes be used during MRI or X-Ray?

Yes, we offer specific Radiolucent electrodes featuring carbon snaps that do not interfere with nuclear imaging systems, making them safe for MRI and X-Ray procedures.

Are the electrodes safe for patients with sensitive skin?

The conductive gels used are designed to be non-irritating, non-sensitizing, and non-cytotoxic to the skin; however, caution is always recommended for hypersensitive patients.

How should unused electrodes be handled to maintain quality?

Unused electrodes must be kept in their original pouch. Once opened, the top of the pouch should be folded over once or twice and stored in a cool, dry place.

Where should the electrodes NOT be applied?

Electrodes should not be placed over skin folds, bony protuberances, cuts, lesions, scar tissue, or areas with active infections.

What is the shelf life/guarantee for these products?

The Disposable ECG Electrodes come with a one-year quality guarantee period when stored under the recommended conditions.
